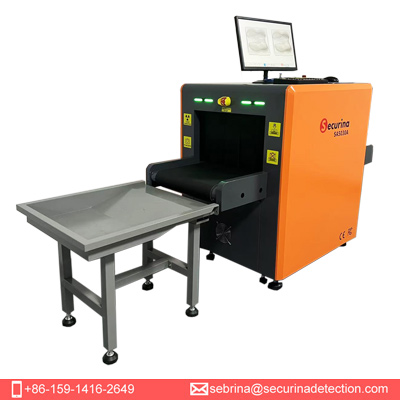

Securina-SA6550 Baggage Inspection X-ray Scanner Machine

Home Products Security Screening Equipment X-ray Security Scanner Securina-SA6550 Baggage Inspection X-ray
Securina-SA6550 Baggage Inspection X-ray Scanner MachineSecurina-SA6550 Baggage Inspection X-ray Scanner Machine

Securina-SA6550 Baggage Inspection X-ray Scanner Machine

  • Product Item:SA6550
  • Tunnel size: 650(W)*500(H)mm
  • Display: Color Scanning Image
  • Voltage of x-ray generator: 160KV
  • Warranty: 1 year
  • Category: X-ray Security Scanner
  • Inquiry Send Email Attachment

    Description

    Securina SA6550 is high-capacity and compact, direct transmission X-ray scanner is designed for screening small-to-medium sized items, such as carry-on bags, briefcases, mail trays and parcels. SA6550 is tough and user-friendly, can handles even the toughest throughput demands.

    Securina SA6550 multi-energy X-ray scanner delivers a clear picture of hidden explosives, weapons, drugs and other contraband in hand-carried and small to mid-sized items. This dual-energy x-ray scanner displays color X-ray images to provide a complete inspection in objects inside of baggage. 13kinds of image enhancement tools, allowing operators to more quickly and easily manipulate image data for the best possible picture of concealed threats.


    Securina SA6550 Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;

    Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.

    Technical characteristic:

    • Dural energy penetration system;
    • TIP program;
    • Clear and distinct image;
    • Scanned imaged can zoom up to 64 times;
    • Partly zoom clear for image parts detail;
    • 13 kinds of image processing functions and 6 kinds of pseudo color;

    Technical parameters:

    Tunnel size 653*505mm (w*h)
    Conveyor speed 0.20m/s
    Conveyor height 670mm
    Max Load 160kgs
    Wire Resolution 38AWG
    Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
    Penetration 30-32mm steel panel
    Monitor 17 inch,High resolution 1280*1024
    X Ray generator anode voltage 140-160KV adjustable
    Cooling/operation cycle Oil Cooling /100%
    X ray Dose per inspection < 1.14 USv
    Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
    Zoom Variable zoom up to X64, support continuous magnification.
    Image Checking Continuous check back image
    Storage capacity Can store more than 100000 image
    Radiation leakage <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
    Film safety In accordance with ASA/ISO1600 film safe standard
    System function F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
    Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
    Frame size 2200*918*1442mm (L*W*H)
    Weight 520kg
    Environment temperature/humidity 0ºC~+40ºC   / 5%~95%(non-condensing)
    Storage temperature/humidity -20ºC~+60ºC  / 5%~95%(non-condensing)
    Power 220VAC (+/-10%) 50+/-3HZ
    Consumption 0.7-1.0KvA
    Noise Level <55db
