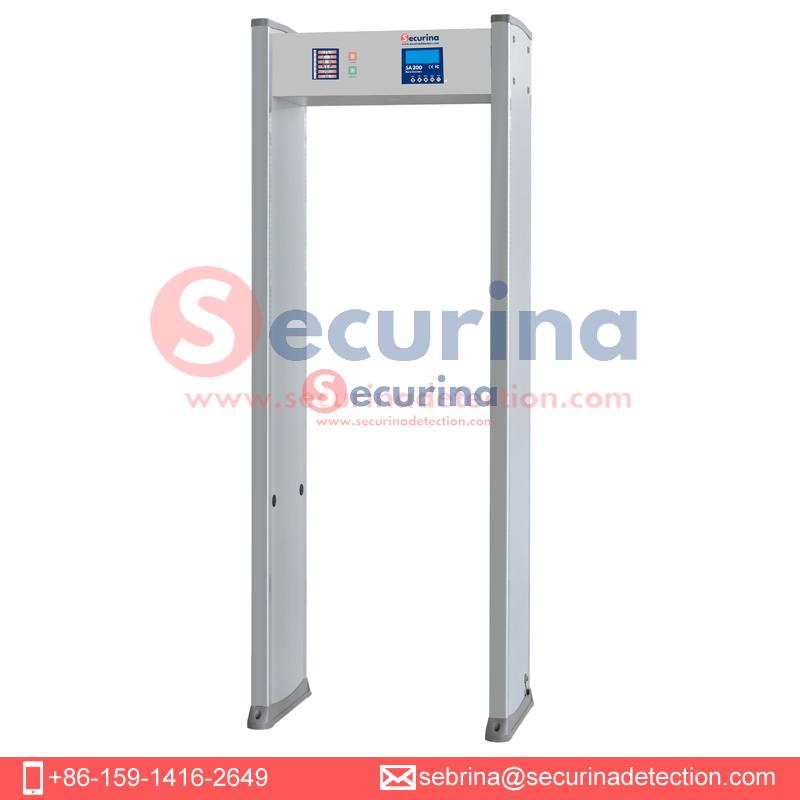

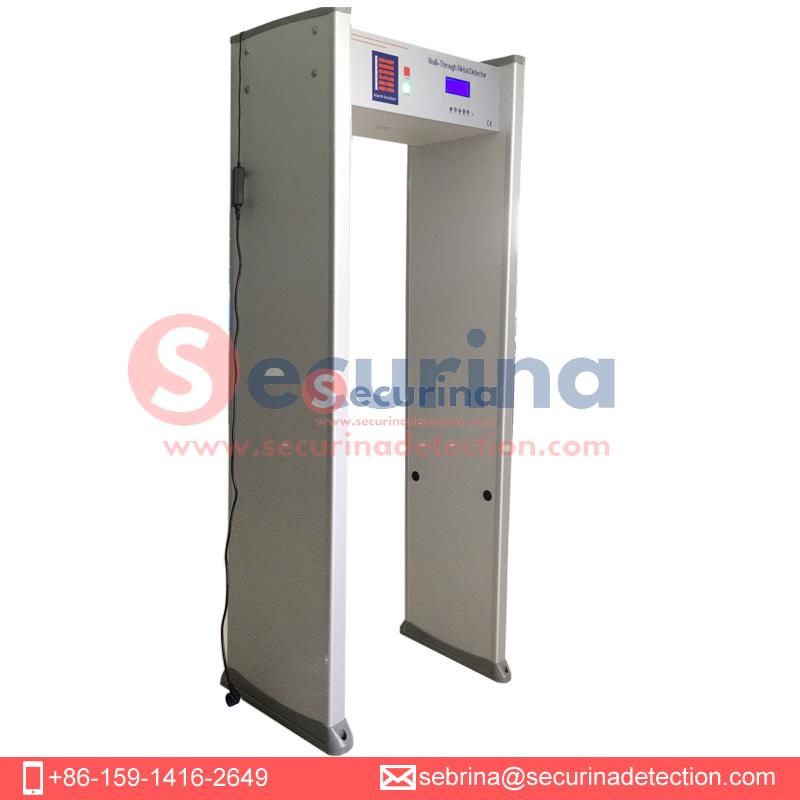

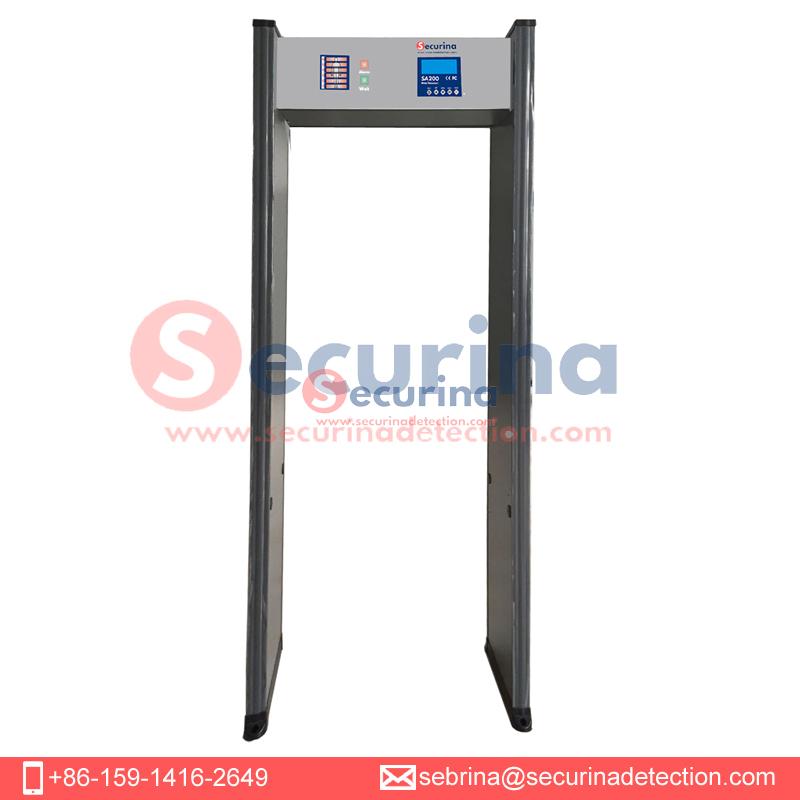

Securina-SA200 6 zones Door Frame Walkthrough Metal Detectors

Securina-SA200 6 zones Door Frame Walkthrough Metal Detectors

Product Item：SA200

Detection zone: 6 zones

Display: small LCD screen

Display: LED alarming panel

Warranty: 1 year

Category：Walk Through Metal Detector

Description

LCD Screen 6-zones Walk-Thru Metal Scanning Gate-SA200

Securina SA200 high sensitivity digital walkthrough metal detector use excellent electromagnetic testing and digital processing technology, has high detection sensitivity of the magnetic metal and nonmagnetic metal, and good recognition for personal items such as coins, keys, belt buckle, etc.

Securina SA200 economical multi-zone walkthrough metal detector, high recognition rate to meet high flow inspection needs; professional production, advanced technology, uniform magnetic field distribution without detection blind spots;

Securina SA200 metal detector door is the first real-world environment to interfere with real-time display (leading in the industry). And SA200 door frame metal detector is equipped with a small LCD screen display, also equipped LED location light accurately displays the hidden position of the contraband, keyboard operation is convenient and intuitive. SA200 security metal detector gate can adapt to high detection speed, adapt to the scene with large traffic, and meet all international electrical safety standards.

Securina SA200 Walkthrough metal detector can detect metal accuracy range: ≥ 4G metal. System detection is automatically performed after power on. SA200 walkthru metal detector door has advanced environmental interference monitoring: the LCD panel displays the current usage environment interference in real time, in order to re-select the operating frequency or re-select the installation environment.

Securina SA200 Multi-zone Walk Through Metal Detector also has the following features:
----Detection zone: 6 detection zone zones (12 independent probes)
----Mode for detecting alarms: simultaneous detection of multiple locations and accurate alarms
----Alarm indication: high brightness LCD screen and LED location alarm indication
----Overall sensitivity level: 0-200
----Sensitivity level of each zone: 0-200

Technic specifications:

Outer frame	2220mm(H) x820mm(W)x500mm(D)
Inner frame	2000mm(H)x700mm(W)x500mm(D)
Unit weight	70KG
Max distance	0.3m at low sensitivity;0.5m at high sensitivity
Electrical Current	AC100V-240V 50/60Hz
Power	12 W
Work Environment	-20 to +45 degree
Sensitive adjustable	0-299
Alarm	sound and light
Screen	LCD in English menu
Counting	traffic and alarming
Detecting Zones	6 zones
Light bar	LED panel on head box
Operation way	Keypad
Sensibilty	With the highest sensibility, it can detect the metal Article as small as the clip. With the range of 0-100, it can be adjusted the Sensibility easily, pre-set the weight, volume, size and location in respect of the metal Articles and eliminate the false alarming for the coin, key, jewelry, leather belt button, etc.
Infrared counting	The intelligent counter can calculate the number of the Passenger flow and the times of alarming.
Detecting areas	Allocation of six mutual over-lapping detecting areas, Simultaneous alarming from multi-areas and accurately ascertaining the location Of the metal articles according to the layout of the metal articles.
Operation temperature/Humidity	5C-40C / 0%-90%(non-condensin

Functions:

Walkthrough Metal Detector can easily detect dangerous items, knife, weapons and gun, and any metal article which is hidden in human body.

Securina SA200 is your value for money economy option that still provides solid performance. Scanning from the archway to the floor it is highly sensitive to weapons. It has an added feature of scratch proof paint and hardy end caps. This unit will handle high volumes with limited damage over time.
